3kWh Wall Mounted Solar Battery - 25.6V 100Ah Model

51.2V 100Ah Wall Mounted LiFePO4 Battery for Home Solar Storage

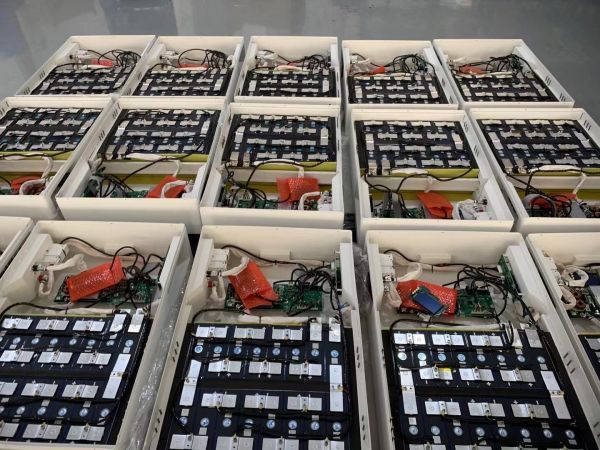

Professional Assembly of 51.2V 100Ah Wall Mounted Solar Batteries at LTS Factory

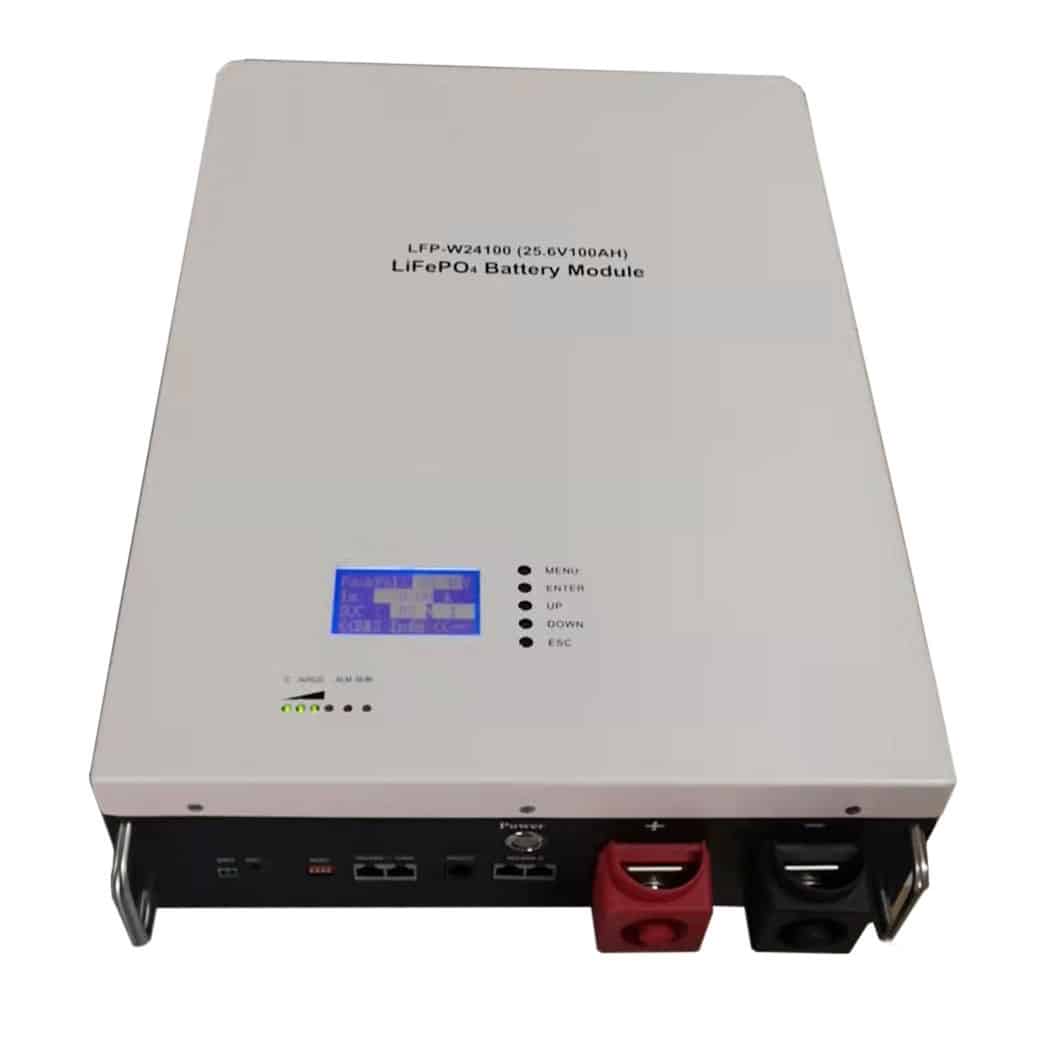

High-Efficiency 25.6V 100Ah LiFePO4 Battery (3kWh)

Grade-A LFP Technology: Maximum safety and superior thermal stability.

24V System Optimization: Perfect for compact residential and off-grid ESS.

Intelligent Smart BMS: Integrated multi-level protection with SOC tracking.

6,000+ Deep Cycles: Engineered for a projected 10-year industrial service life.

LTS 25.6V 100Ah: The Reliable 3kWh Wall Mounted Energy Storage

The 25.6V 100Ah LiFePO4 Battery by LTS is the definitive 3kWh wall-mounted solar battery for 24V solar architectures. Designed for both residential self-consumption and mobile off-grid applications, it provides a stable home battery backup 3kWh with zero maintenance. As a leading source factory in Dongguan, we ensure every 24V energy storage system meets rigorous quality standards, offering twice the energy density of lead-acid at half the weight. Learn more about LiFePO4 battery or explore our 5kWh models for larger capacity needs.

Engineering Excellence of the 3kWh Storage Series

Passive Cooling Design: Aesthetic metal case optimized for natural heat dissipation.

Smart Communication: RS485/CAN protocols for seamless inverter handshake.

Scalable Architecture: Supports parallel connection to expand energy banks easily.

Technical Specifications: 25.6V 100Ah Deep Cycle Lithium Battery

SPECIFIC MODEL PARAMETERS

Nominal Voltage

25.6V

Nominal Capacity

100Ah

Energy

2560Wh

Dimension (LWH)

482mm L * 430mm W * 150mm H

Weight

24kg

Terminal

Cell Technology

Grade-A Lithium Iron Phosphate (LiFePO4)

Cycle Life

＞6,000 Cycles @ 0.2C 80% DOD

Integrated BMS

Over-charge, Over-discharge, Short-circuit & Thermal Protection

Charge Temperature

-20℃ to 60℃

Discharge Temperature

-20℃ to 60℃

Storage Temperature

-10℃ to 45℃

Communication

CAN / RS485 / RS232CAN / RS485 / RS232/WIFI/Bluetooth

Precision Module Assembly & High-Current Testing

Full Cycle Performance Aging & Quality Standards

Precision Laser Welding: We utilize high-precision laser welding to ensure ultra-low resistance connections, significantly reducing heat generation during high-current discharge.
48-Hour BMS Aging Test: Every Battery Management System undergoes a continuous 48-hour stress test to guarantee zero-defect communication and stable protection.
Automated Cell Matching: Prismatic cells are strictly sorted by voltage and internal resistance to ensure consistent 6,000+ cycle performance.
On-Site Reliability Lab: Batch-testing in specialized thermal and mechanical chambers ensures durability for demanding off-grid environments.

Versatile Applications for the LTS 3kWh Battery Series

Compact Home Solar: Perfect for 24V 3kWh energy storage system banks in off-grid cabins.
RV & Marine Power: High-reliability deep cycle lithium battery for long-haul travel and yachts.
Telecom Backup: Stable 24V energy storage for remote communication towers.
Portable Power Stations: Core battery module for high-capacity professional mobile power.

Global DDP Logistics for the 25.6V 100Ah LiFePO4 Battery

UN38.3 Certified Export Packaging | Reliable DDP/CIF Logistics to 80+ Countries

UN-Certified Plywood Crate Packaging for International Safety

UN38.3 Certified Packaging: High-density EPE shock-absorbent foam encased in heavy-duty UN-certified plywood crates for zero-impact transit.
Vacuum-Sealed Protection: Units are vacuum-sealed in anti-static, moisture-proof bags to maintain factory-fresh condition throughout maritime transport.
Global Logistics Network: Flexible FOB, CIF, and professional DDP services covering major hubs in North America, Europe, and Southeast Asia.
Full Compliance Suite: Comprehensive documentation included with every order: MSDS, UN38.3, and Sea/Air Transport Safety Certificates.

LTS 3kWh Solar Battery Support & FAQ

Professional technical guide regarding the 25.6V 100Ah LiFePO4 Battery maintenance, inverter compatibility, and installation for 3kWh energy storage system projects.

Can I use this 25.6V 100Ah LiFePO4 Battery with my 24V inverter?

Yes. This battery is optimized for 24V systems and is compatible with most 24V hybrid and off-grid inverters via a stable 25.6V output.

How long is the service life of the 3kWh wall-mounted solar battery?

Equipped with Grade-A cells, it provides over 6000 deep cycles @ 80% DOD, ensuring a reliable 10+ year lifespan for your home battery backup 3kWh.

Is the 3kWh wall-mounted solar battery maintenance-free?

Yes, our 25.6V 100Ah LiFePO4 Battery is completely maintenance-free. Unlike lead-acid, it requires no watering or venting, as the integrated smart BMS automatically handles all cell balancing and protection protocols.

Can I parallel multiple units of the LTS wall mounted battery?

Absolutely. You can connect up to 4 units of this 3kWh energy storage system in parallel to scale your total capacity to over 10kWh. This modularity makes it a flexible solution for growing home battery backup 3kWh requirements.

Request a Wholesale Quote for 3kWh Wall Mounted Solar Battery

Partner with Our Dongguan Source Factory for Professional 24V Energy Storage System Solutions

As a leading manufacturer in Dongguan, LTS Battery offers factory-direct pricing and engineering-level support for the 25.6V 100Ah LiFePO4 Battery. Whether you need bespoke OEM/ODM branding or reliable DDP shipping for your home battery backup 3kWh distribution, our team ensures stable quality and technical excellence. Contact us today to discuss your specific energy storage project requirements.
