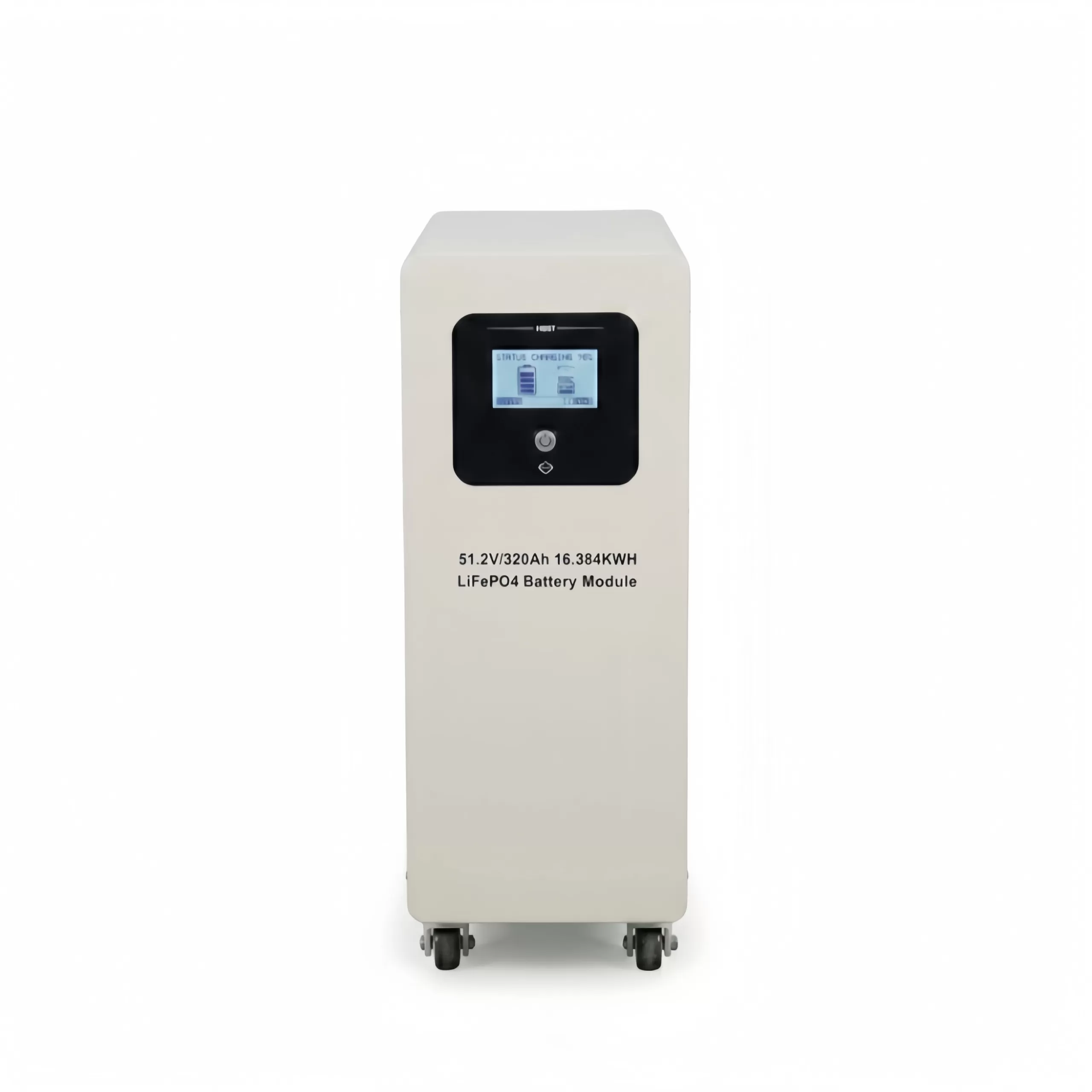

51.2V 320Ah 16kWh industrial energy storage system wholesale supplier

16kWh LiFePO4 home energy storage system wholesale factory direct LTS Battery

51.2V 314Ah LiFePO4 Battery - 16kWh Floor Standing WiFi Smart System

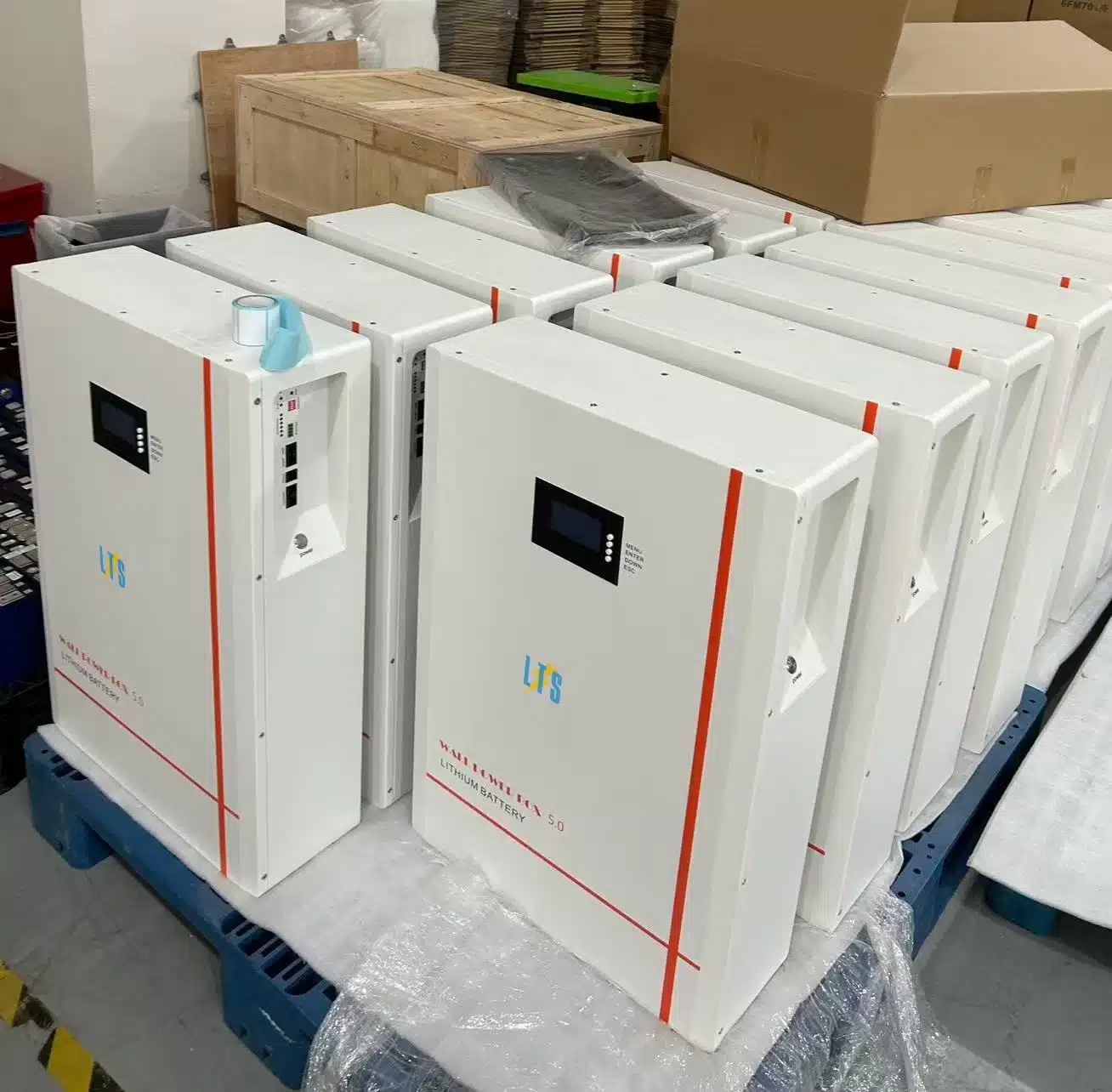

High-capacity white LiFePO4 solar storage modules ready for dispatch

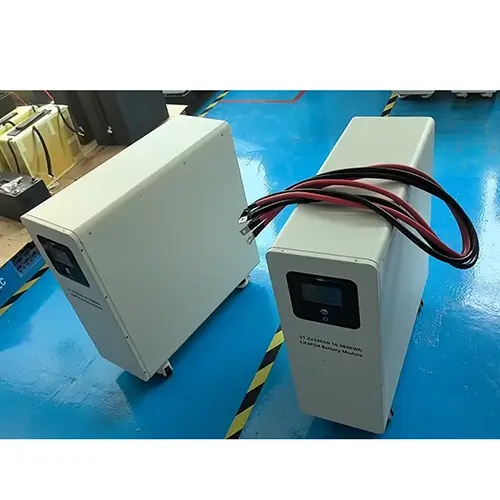

51.2V 314Ah LiFePO4 Battery: Next-Gen 16kWh Floor Standing ESS

Next-Gen 314Ah Prismatic Cells: 16.07kWh of ultra-high density energy storage.

Integrated WiFi Monitoring: Real-time Cloud access for the WiFi smart battery system.

Elegant Floor Standing Design: Durable SPCC steel casing with optimized airflow.

6,500+ Deep Cycles: Premium Grade-A cells for a 15-year industrial service life.

Superior Capacity with the 51.2V 314Ah LiFePO4 Battery

The 51.2V 314Ah LiFePO4 Battery represents the pinnacle of high-density energy storage for 2026. With over 16kWh solar battery storage capacity in a single unit, this floor standing solar battery provides robust power for entire estates. The built-in WiFi smart battery system ensures that your LTS 314Ah energy storage is always optimized via remote firmware updates and data tracking.

Utilizing advanced LiFePO4 battery chemistry, we guarantee thermal stability and longevity. For smaller energy requirements, explore our 5kWh wall mounted batteries , or parallel multiple 16kWh units for massive industrial energy banks.

Engineering Excellence of the 16kWh Solar Battery Storage

Next-Gen 314Ah Prismatic Cells: Higher energy density and longer life than traditional 280Ah cells.

WiFi Cloud Integration: Integrated WiFi smart battery system for global remote monitoring.

Stable Floor-Standing Architecture: Aesthetic design optimized for indoor installation and heat dissipation.

6,500+ Deep Cycles: Engineered for a 15-year service life in demanding environments.

Technical Specifications: 51.2V 314Ah Series

SPECIFIC MODEL PARAMETERS

Nominal Voltage

51.2V

Nominal Capacity

314Ah

Energy

16.07kWh

Dimension (LWH)

Approx. 442 * 600 * 220 mm (Customizable)

Weight

Approx. 138kg

Terminal

M8 Industrial Terminals

Cell Technology

Grade-A Lithium Iron Phosphate (LiFePO4)

Cycle Life

＞6,000 Cycles @ 0.2C 80% DOD

Integrated BMS

Over-charge, Over-discharge, Short-circuit & Thermal Protection

Charge Temperature

-20℃ to 60℃

Discharge Temperature

-20℃ to 60℃

Storage Temperature

-10℃ to 45℃

Communication

CAN / RS485 / RS232CAN / RS485 / RS232/WIFI/Bluetooth

Automated Laser Welding & 314Ah Cell Calibration

Rigorous 72-Hour High-Load Performance Aging Test

Precision Laser Welding: We utilize high-precision laser welding to ensure ultra-low resistance connections, significantly reducing heat generation during high-current discharge.
48-Hour BMS Aging Test: Every Battery Management System undergoes a continuous 48-hour stress test to guarantee zero-defect communication and stable protection.
Automated Cell Matching: Prismatic cells are strictly sorted by voltage and internal resistance to ensure consistent 6,000+ cycle performance.
On-Site Reliability Lab: Batch-testing in specialized thermal and mechanical chambers ensures durability for demanding off-grid environments.

High-Capacity Applications for the 16kWh Solar Battery Storage

Whole-House Backup: Sufficient energy for 24-hour power security for large estates.
Smart Home Ecosystems: Integrated WiFi smart battery system for modern energy management.
Light Commercial ESS: High-reliability power for retail and professional offices.
EV Charging Support: Robust 314Ah energy bank to support high-current vehicle charging.

Global DDP Logistics for LTS 314Ah Energy Storage

UN38.3 Certified Export Packaging | Reliable DDP/CIF Logistics to 80+ Countries

UN38.3 Certified Reinforced Plywood Crate Packaging

UN38.3 Certified Packaging: High-density EPE shock-absorbent foam encased in heavy-duty UN-certified plywood crates for zero-impact transit.
Vacuum-Sealed Protection: Units are vacuum-sealed in anti-static, moisture-proof bags to maintain factory-fresh condition throughout maritime transport.
Global Logistics Network: Flexible FOB, CIF, and professional DDP services covering major hubs in North America, Europe, and Southeast Asia.
Full Compliance Suite: Comprehensive documentation included with every order: MSDS, UN38.3, and Sea/Air Transport Safety Certificates.

LTS 51.2V 314Ah WiFi Smart Battery FAQ

Expert technical support and insights for the next-generation 16kWh solar battery storage and integrated WiFi smart battery system.

What makes the 314Ah cell superior to the standard 280Ah cell?

The 314Ah cell is the latest evolution in LFP technology, offering approximately 12% higher energy density in the same footprint. This allows our 51.2V 314Ah LiFePO4 battery to provide over 16kWh of storage without increasing the size of the cabinet.

How do I monitor my LTS 314Ah energy storage unit remotely?

Every unit comes with an integrated WiFi smart battery system. By connecting to your home network, you can monitor real-time SOC, voltage, and health metrics through our dedicated mobile app or Cloud dashboard from anywhere.

Is this floor standing solar battery compatible with my existing inverter?

Yes. Our smart BMS supports CAN/RS485 communication protocols for major global brands like Deye, Victron, Luxpower, and Growatt, ensuring a seamless plug-and-play experience.

Can I expand the capacity of this 16kWh solar battery storage later?

Absolutely. You can parallel up to 15 units of the 51.2V 314Ah LiFePO4 battery, creating a massive energy bank of over 240kWh for large-scale residential or commercial backup.

Get Wholesale Pricing for the 51.2V 314Ah LiFePO4 Battery

Direct Factory Partnership for the 51.2V 314Ah LiFePO4 Battery

LTS Battery is your source factory in Dongguan for the next generation of 16kWh solar battery storage. Contact us today for factory pricing on the WiFi smart battery system and professional DDP shipping support for your global ESS projects.
