51.2V 100Ah LiFePO4 Battery for 5kWh Rack Mount Storage System

Scalable Rack Mount Solar Battery Stack - 5kWh LiFePO4 Modules

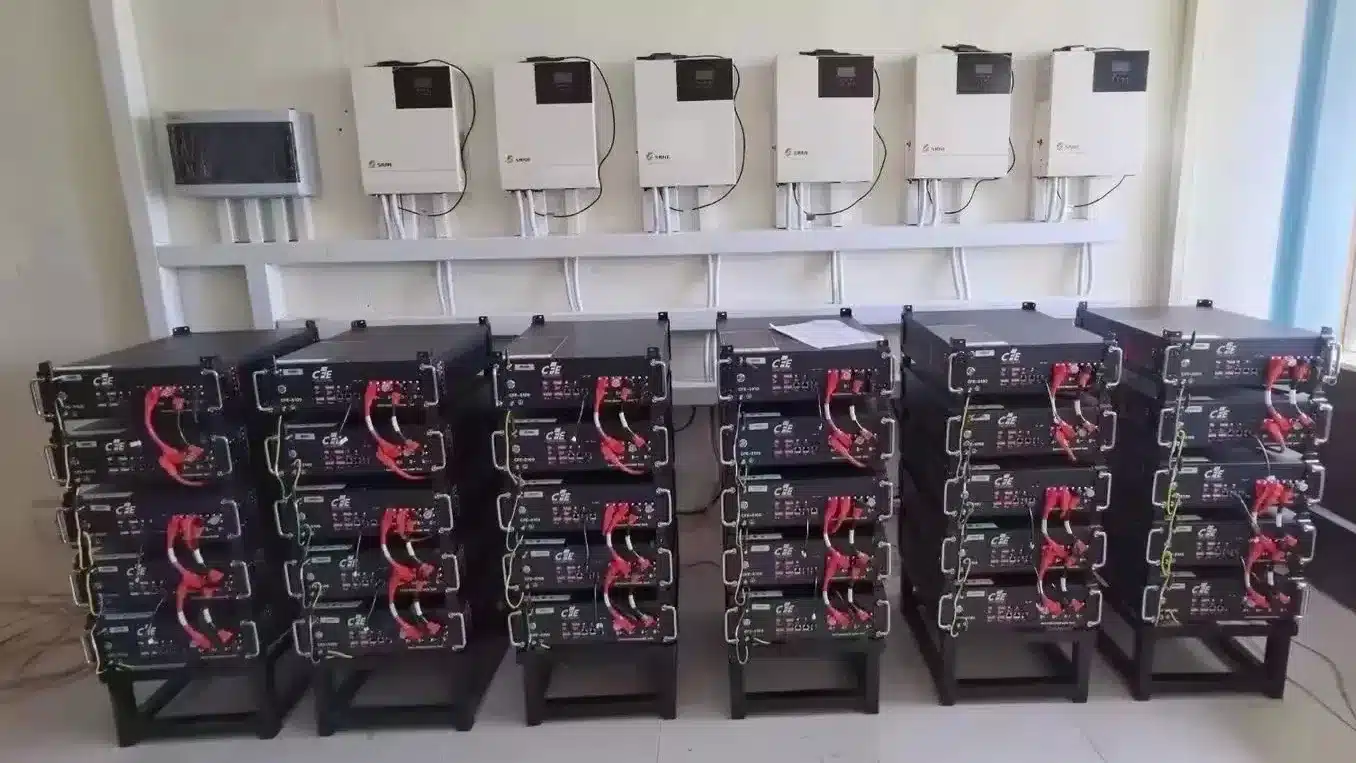

Large-scale LTS 5kWh Energy Storage Installation for Commercial Solar Projects

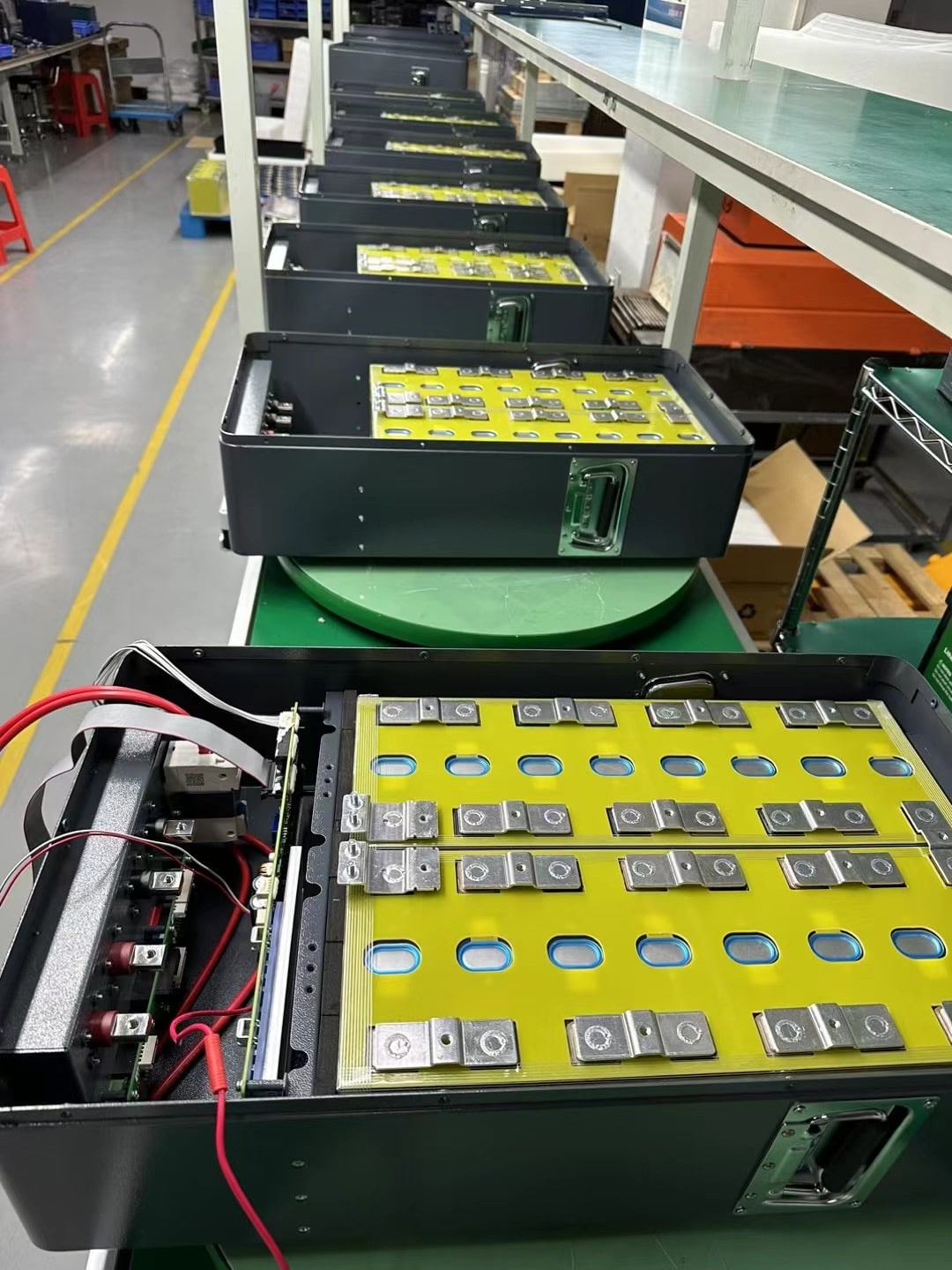

LTS Factory Production Line for 51.2V 100Ah LiFePO4 Battery Modules

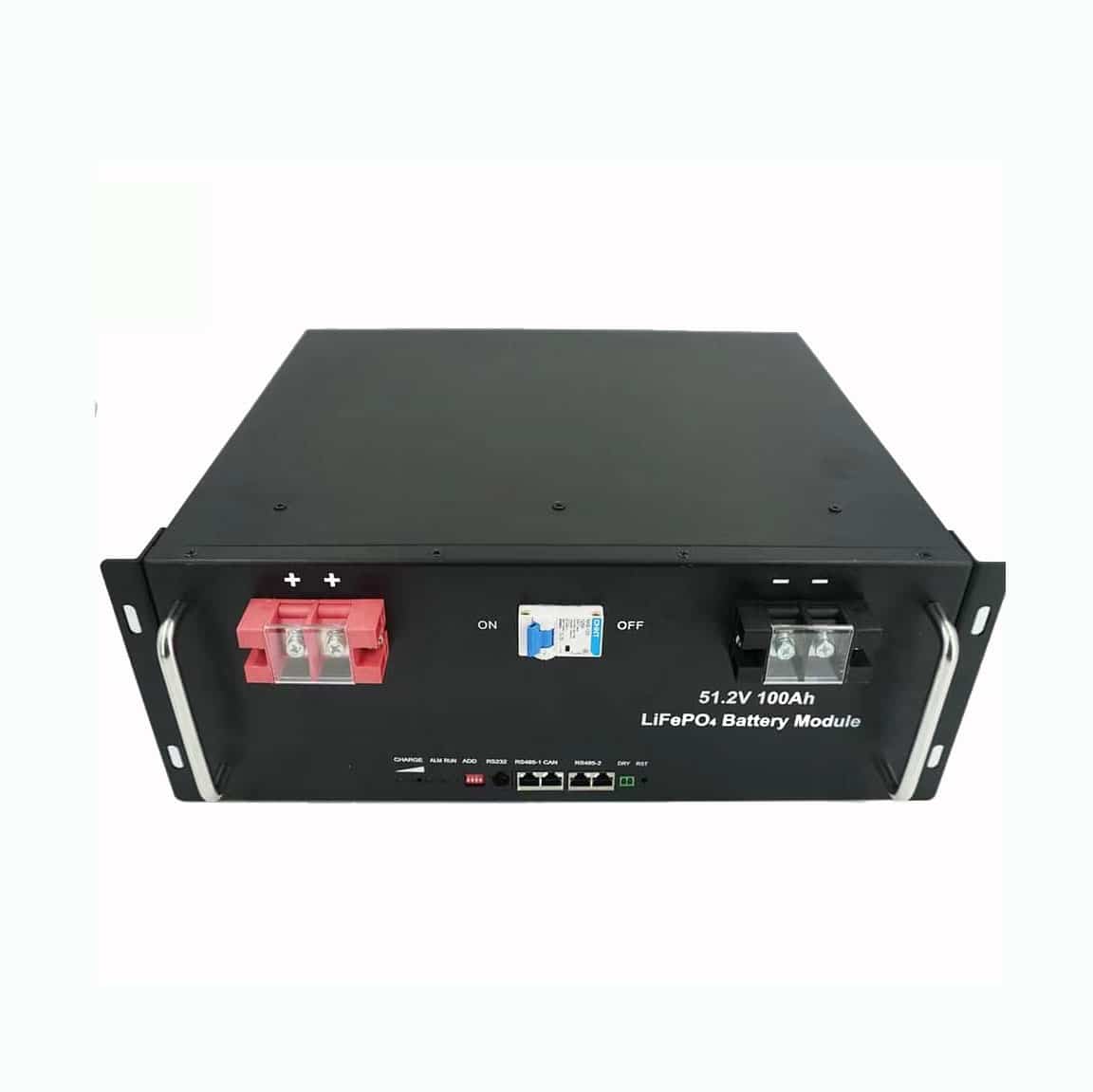

5kWh Rack Mount Battery: Professional 51.2V 100Ah ESS

Standard 19-inch Rack Design: Optimized for seamless integration into server-style energy cabinets.

Grade-A LiFePO4 Cells: Reliable 51.2V 100Ah LiFePO4 battery technology for maximum safety.

Intelligent Smart BMS: Integrated protection and real-time monitoring of every battery cell.

6,000+ Deep Cycles: Engineered for a 15-year industrial service life in residential solar setups.

Standardized Energy with the 5kWh Rack Mount Battery

The 5kWh Rack Mount Battery offers a compact and efficient solution for modern energy management. Utilizing a 51.2V 100Ah LiFePO4 battery configuration, this rack mount solar battery integrates effortlessly with mainstream hybrid inverters.

Based on professional lithium iron phosphate technology , our LTS 5kWh energy storage units provide thermal stability and high discharge efficiency. For larger capacity needs, explore our 15kWh rack mount batteries or parallel multiple 5kWh modules for scalable backup power for home.

Engineering of the 51.2V 100Ah LiFePO4 Battery

Space-Saving 3U Design: Efficient use of rack space for both residential and commercial ESS.

Intelligent Communication: Supports CAN, RS485, and RS232 protocols for smart monitoring.

High Energy Density: Reliable power delivered in a standardized 19-inch industrial chassis.

Modular Expansion: Parallel support to easily scale your backup power for home capacity.

Technical Specifications: LTS 5kWh Energy Storage

SPECIFIC MODEL PARAMETERS

Nominal Voltage

51.2V

Nominal Capacity

100Ah

Energy

5.12kWh

Dimension (LWH)

482mm L * 430mm W * 222mm H

Weight

50kg

Terminal

Industrial M8 Copper Terminals

Cell Technology

Grade-A Lithium Iron Phosphate (LiFePO4)

Cycle Life

＞6,000 Cycles @ 0.2C 80% DOD

Integrated BMS

Over-charge, Over-discharge, Short-circuit & Thermal Protection

Charge Temperature

-20℃ to 60℃

Discharge Temperature

-20℃ to 60℃

Storage Temperature

-10℃ to 45℃

Communication

CAN / RS485 / RS232CAN / RS485 / RS232/WIFI/Bluetooth

Automated Precision Cell Matching & Laser Welding

100% End-of-Line Cycle & BMS Protocol Testing

Precision Laser Welding: We utilize high-precision laser welding to ensure ultra-low resistance connections, significantly reducing heat generation during high-current discharge.
48-Hour BMS Aging Test: Every Battery Management System undergoes a continuous 48-hour stress test to guarantee zero-defect communication and stable protection.
Automated Cell Matching: Prismatic cells are strictly sorted by voltage and internal resistance to ensure consistent 6,000+ cycle performance.
On-Site Reliability Lab: Batch-testing in specialized thermal and mechanical chambers ensures durability for demanding off-grid environments.

Applications for the 5kWh Rack Mount Battery

Home Solar Storage: Seamless backup power for home during grid outages.
Telecom Infrastructure: Standardized 48V/51.2V power for remote communication base stations.
Data Center Continuity: Reliable energy reserves for IT server racks and UPS systems.
Micro-grid Projects: Modular energy bank for off-grid and hybrid power systems.

Global DDP Logistics for Rack Mount Solar Battery Systems

UN38.3 Certified Export Packaging | Reliable DDP/CIF Logistics to 80+ Countries

UN38.3 Certified Reinforced Plywood Crating for Large ESS

UN38.3 Certified Packaging: High-density EPE shock-absorbent foam encased in heavy-duty UN-certified plywood crates for zero-impact transit.
Vacuum-Sealed Protection: Units are vacuum-sealed in anti-static, moisture-proof bags to maintain factory-fresh condition throughout maritime transport.
Global Logistics Network: Flexible FOB, CIF, and professional DDP services covering major hubs in North America, Europe, and Southeast Asia.
Full Compliance Suite: Comprehensive documentation included with every order: MSDS, UN38.3, and Sea/Air Transport Safety Certificates.

5kWh Rack Mount Battery Support & FAQ

Technical guidelines for the 51.2V 100Ah LiFePO4 battery setup and maintenance.

Is the 5kWh Rack Mount Battery compatible with my inverter?

Yes. Our rack mount solar battery supports communication with major brands like Deye, Victron, and Growatt via the integrated smart BMS.

How many modules can I parallel in a single rack?

You can parallel up to 15 units of the LTS 5kWh energy storage system to achieve a massive 75kWh+ energy bank.

Why is a 51.2V 100Ah LiFePO4 battery safer than NCM?

LiFePO4 technology offers superior thermal stability and a much longer cycle life (6,000+), making it the gold standard for backup power for home.

Does the rack mount solar battery require regular maintenance?

No. The intelligent BMS automatically manages cell balancing and protection, ensuring your LTS 5kWh energy storage stays maintenance-free.

Request a Quote for the 5kWh Rack Mount Battery

Direct Factory Partnership for LTS 5kWh Energy Storage

LTS Battery is your source factory in Dongguan for the 51.2V 100Ah LiFePO4 battery series. We provide wholesale pricing on the 5kWh rack mount battery and professional DDP shipping support for your global backup power for home projects.
